AirTouch 5 zoning control for ducted systems — Auckland
Most ducted systems run the whole house off one thermostat in the hallway. AirTouch 5 gives every room its own temperature, its own sensor and its own airflow — so you stop paying to heat empty bedrooms. We design, supply, install and commission AirTouch zoning across Auckland, on new ducted systems and as a retrofit to existing ones.
One thermostat, one temperature, whole house
Standard ducted control measures the air in one spot and treats your home as a single room. Your house doesn’t behave like one.
Ducted without proper zoning
The sensor sits in the hallway. The north-facing lounge cooks while the south bedroom stays cold. Rooms nobody is in get conditioned anyway. Basic damper zoning gives you an on/off switch per area — it moves air around, but it doesn’t hold a temperature in each room. You end up chasing comfort with the remote and paying for air you never wanted.
Ducted with AirTouch 5
Every zone gets its own temperature sensor and its own target. Motorised dampers modulate airflow to each room to actually reach that number, and shut off rooms that don’t need conditioning. Sun exposure, room size, ceiling height and insulation all get handled automatically, because the system responds to what the room is actually doing rather than averaging the whole house.
What the controller actually does

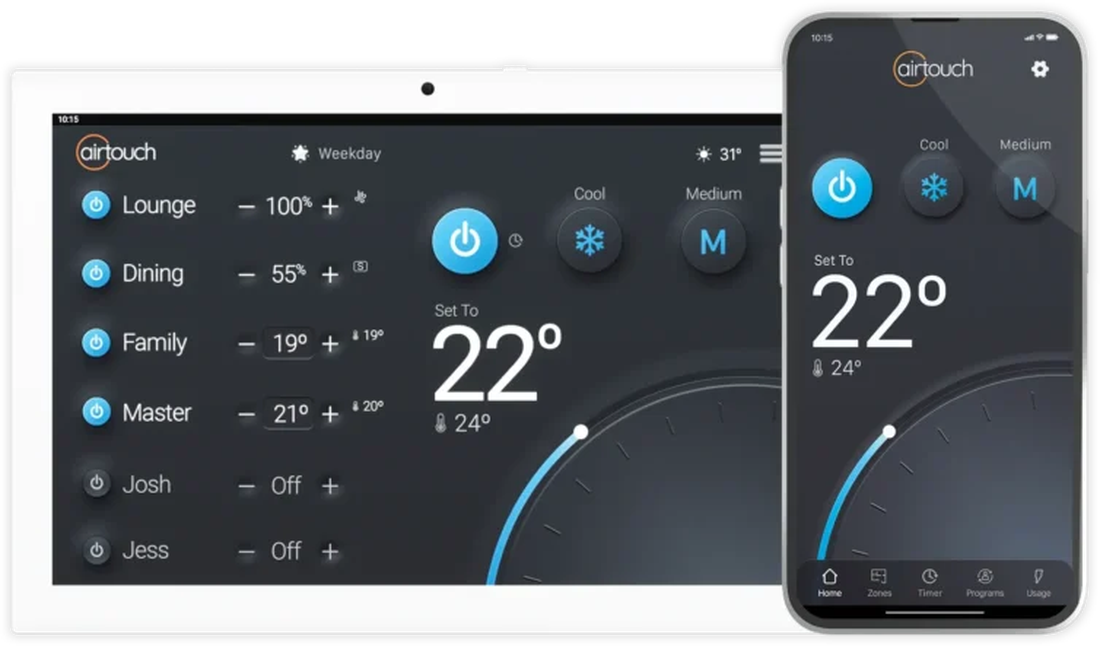

An 8-inch wall console that replaces the standard ducted controller, plus an app that mirrors it.
Room-by-room temperature
Set the lounge to 22° and the bedrooms to 18° and let the system hold both. Individual sensors per zone, not one thermostat for the whole house.
Up to 16 zones
Enough for almost any Auckland home, including larger two-storey places and multi-system setups. Most homes land somewhere between four and eight.
A console you’ll actually use
A clear touchscreen showing every room at a glance, instead of a two-line LCD and a manual. Pick a wallpaper theme to suit the room it’s mounted in.
Control from anywhere
The app does everything the wall console does. Warm the house on the drive home, or turn it off from work when you realise you left it running.
Weather aware
Local weather, UV and air quality on the console, and the system adjusts with the conditions rather than sitting on one fixed setpoint all day.
Five year warranty
AirTouch back the AirTouch 5 console for five years. Designed in Australia by Polyaire for Australasian homes and conditions.
AirTouch publish energy savings of up to 55% when AirTouch 5 is paired with their Intelligent Temperature Sensors. That figure comes from simulation under ideal conditions — your actual saving depends on your home, your habits and how the system is set up. We’d rather tell you that up front than quote a number you won’t hit. Five year warranty applies to the AirTouch 5 console.
Will it work with your system?
New ducted installs
Easiest path. We plan the zones as part of the ductwork design, so damper positions, duct sizing and sensor locations are right from the start rather than retrofitted around what already exists. If you’re getting a ducted system quoted, ask us to price it both ways.
Retrofit to an existing system
Often yes. AirTouch works with ducted systems from most major brands — Daikin, Mitsubishi Electric and Fujitsu among them — but compatibility depends on your exact indoor unit and what zoning hardware is already in the ceiling. We check your model and inspect the existing setup before quoting. If yours isn’t compatible, we’ll say so rather than sell you something that half works.
What a zoned home actually feels like
Morning
Bedrooms and bathroom warm before the alarm. Living areas come on as you get up, not at 3am.
Everyone out
The house drops back on its own. No more discovering the ducted has run flat out all day to an empty home.
Afternoon
Auckland does its four-seasons thing. The system tracks the change instead of holding one setpoint through it.
Evening
Lounge comfortable, bedrooms cooler for sleeping, unused rooms off. All at once, all without touching a remote.
Zoning done properly, not just plugged in
A zoning controller is only as good as the ductwork and commissioning behind it.
1. Free on-site assessment. We look at your ceiling or underfloor space, your existing system if you have one, your layout, and how the house is actually used. Then we work out sensible zones with you — that’s a conversation about your household, not a formula.
2. Compatibility check and fixed quote. We confirm AirTouch works with your specific indoor unit before anything is ordered, then give you a fixed written price covering the console, sensors, dampers and commissioning.
3. Install and airflow balancing. Dampers, sensors, cabling and console. Then we balance the airflow across the zones and commission the system — this is the step that gets skipped, and it’s the one that decides whether zoning actually works.
4. Setup and handover. We set up your zones, schedules and app before we leave, and walk you through it properly. If you want AirTouch Home or Secure added later, the groundwork is already there.
AirTouch and zoning questions
Can AirTouch 5 be retrofitted to a ducted system I already have?
Usually, yes. It depends on your indoor unit brand and model, and on what zoning hardware is already installed. AirTouch works with ducted systems from most major brands including Daikin, Mitsubishi Electric and Fujitsu. We check your exact model and inspect the ceiling space before quoting, so you get a straight yes or no rather than a surprise on installation day.
How is this different from the zoning my ducted system already has?
Most standard ducted zoning is on/off airflow control — it opens or closes a damper to an area, but the temperature is still measured in one place for the whole house. AirTouch puts a sensor in each zone and modulates the airflow to hold a target temperature in that specific room. In practice that's the difference between "some air goes to the bedrooms" and "the bedrooms sit at 18 degrees".
How many zones do I need?
AirTouch 5 handles up to 16, but most Auckland homes sit between four and eight. A common setup is living areas, kitchen and dining, master bedroom, and the other bedrooms grouped together. More zones means more control but also more dampers and more cost, so we work through what's actually worth zoning separately in your home rather than maximising the number.
Will zoning really cut my power bill?
It should, because you stop conditioning rooms nobody is in. AirTouch publish savings of up to 55% when paired with their Intelligent Temperature Sensors, but that comes from simulation under ideal conditions. Your real result depends on your home, your insulation, how many zones you run and how you use them. Treat the headline number as a best case, not a promise — the more reliable benefit is that the house is comfortable in the rooms you're actually in.
What does AirTouch zoning cost in Auckland?
It's priced per home, because it depends on the number of zones, how many motorised dampers are needed, whether it's going into a new system or retrofitted to an existing one, and how accessible your ceiling space is. We quote a fixed price after a free on-site assessment. If you're already getting a ducted system quoted from us, we can price it with and without zoning so you can compare properly.
Do I need AirTouch Home and AirTouch Secure as well?
No. AirTouch 5 works on its own as a zoning and climate controller, and that's what most people start with. AirTouch Home is a free software upgrade that adds smart home control if you want it, and AirTouch Secure is optional hardware on top of that. You can add either later without redoing the zoning work.
Is AirTouch Secure a replacement for a monitored alarm?
No, and we won't pretend otherwise. AirTouch describe it as an awareness tool rather than a monitored security system or life-safety device. It sends alerts to your phone, but nobody is watching it on your behalf, and it relies on your Wi-Fi, power and internet connection. If you want monitored security, install a monitored alarm. AirTouch Secure sits alongside that quite happily.
Does it work with voice assistants?
Yes, once AirTouch Home is installed. It works with Google Assistant, Apple Home and Siri, and Amazon Alexa. You'll need an active Wi-Fi connection and the system set up on your home network, which we handle at handover.
Do you service AirTouch systems as well as install them?
Yes. We service and repair ducted systems across Auckland, including zoned ones. If your zoning has never worked properly since it was installed, that's usually an airflow balancing or commissioning problem rather than a faulty controller, and it's normally fixable.
Get your zoning priced properly
Tell us about your home and your existing system if you have one — we’ll check compatibility and arrange a free assessment.
